Plugin setup

The plugin setup contains everything that describes the computer and not the simulation project, that is, where Python and the simulation software are installed, and where simulations will be written. These settings are made once per computer. They are kept apart from the description of a reach (aXqua case setup), so that a case can be copied to another computer without changes.

Plugin profile

All settings of a computer are stored in one file, the profile. Its name ends with .axq-profile. The default profile is the file default.axq-profile in the aXqua configuration folder of the user (~/.config/axqua/ on Linux). Each user account of a computer has its own profile.

In the plugin. The Configuration tab shows the profile of this computer. On a computer without a profile, click Create profile…: aXqua searches for Python, TELEMAC, OpenFOAM, ParaView and VisIt and opens the profile editor with what it found. With a profile, the button reads Edit profile…. Every path in the editor has a button that opens a file dialog, so that nothing has to be typed. The editor has three buttons at the bottom right:

Save writes the profile and checks it. The window stays open and shows what the check found.
Cancel discards the changes since the last save and closes the window.
Exit closes the window and asks first if there are changes that were not saved.

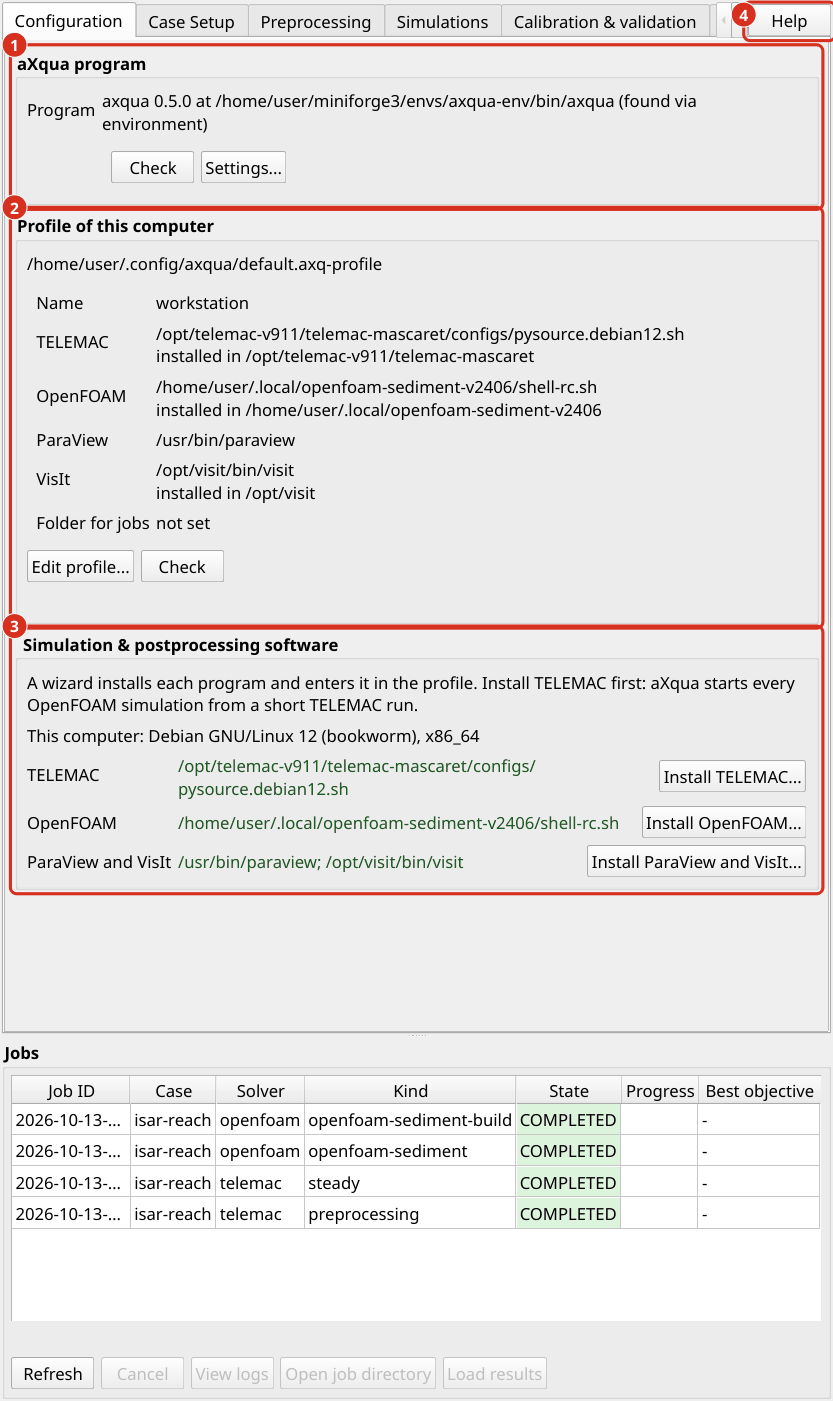

The Configuration tab. (1) The axqua program that the plugin calls, with Settings… to select it. (2) The profile of the computer with what it names for each program, Edit profile… and Check. (3) The box Simulation & postprocessing software: the installation wizards, with each program that was found in dark green; a program that was not found is named in bold dark purple. (4) Help opens the documentation at the section of the tab that is showing: a copy built on this computer if there is one, else the published documentation, in German or French when QGIS is set to one of them. Clean Up to its left removes files that the cases no longer need (Freeing disk space).

Each program has two rows in the editor: its installation folder, and below it the file that aXqua runs. For TELEMAC and OpenFOAM this file is the environment script (Define solver bindings), and for ParaView and VisIt it is the program file. Selecting the installation folder is sufficient: aXqua searches the folder and enters the file in the row below, where it can still be changed. If a folder contains several environment scripts, the editor lists them, and one of them has to be selected in the row below.

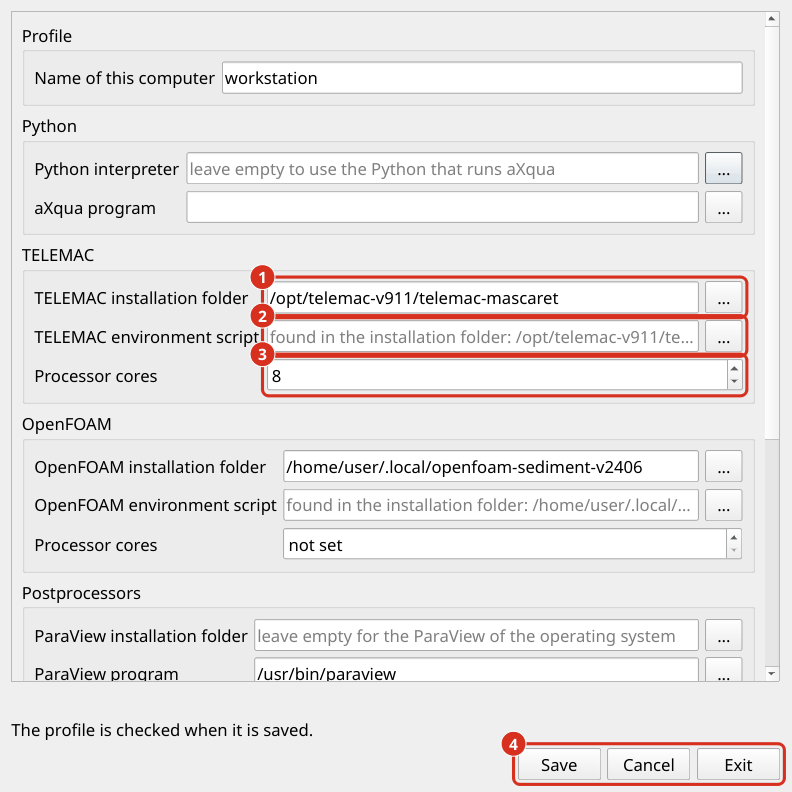

The profile editor. (1) The installation folder of a program, selected with the button next to it. (2) The environment script, here found by aXqua in the installation folder. (3) The number of processor cores for a simulation. (4) Save, Cancel and Exit.

A program that is installed with one of the installation wizards is entered in the profile by the wizard, together with its installation folder (Simulation Software). The editor is needed for a program that was installed by other means, and for the remaining settings.

The check never prevents saving. It marks each entry that is not in order with a triangle, orange for a warning and dark red for an error. A click on a triangle opens the message with its remedy and a button that opens this documentation at the explanation of the message (Warning messages, Error messages). The button Check on the Configuration tab repeats the check at any time.

In a terminal. To create the profile, let aXqua detect what is installed on the computer:

axqua profile init

The command searches for Python, TELEMAC, OpenFOAM, ParaView and VisIt, writes what it finds into the default profile and prints the location of the file. It never overwrites an existing profile. Afterwards, verify the profile:

axqua profile check

The check reports everything that is missing or wrong, each item with the entry of the profile that it concerns. It also enters the environment of TELEMAC and of OpenFOAM, to verify that the codes can actually be started, which takes a few seconds. axqua profile show prints the profile in use.

The profile is a text file in YAML format and can be completed with a text editor:

schema_version: 1
name: workstation
python:
  executable: /home/user/miniforge3/envs/axqua-env/bin/python
  axqua: /home/user/miniforge3/envs/axqua-env/bin/axqua
installations:
  telemac: /home/user/opt/telemac-mascaret
  openfoam: /usr/lib/openfoam/openfoam2406
  visit: /home/user/opt/visit
solvers:
  telemac:
    setup_script: /home/user/opt/telemac-mascaret/configs/pysource.debian12.sh
    mpi_processes: 12
  openfoam:
    setup_script: /usr/lib/openfoam/openfoam2406/etc/bashrc
    mpi_processes: 16
postprocessors:
  paraview: /usr/bin/paraview
  visit: /home/user/opt/visit/bin/visit
jobs:
  root: /scratch/axqua-jobs
display:
  min_depth: 0.01
  velocity_cap: 5.0

Block	Content
`python`	The Python interpreter in which aXqua is installed, and the `axqua` program that the plugin calls.
`installations`	The folder in which each program is installed on this computer, with one entry each for `telemac`, `openfoam`, `paraview` and `visit`. If a folder is given and the entry of the program under `solvers` or `postprocessors` is missing, aXqua uses the environment script or the program file that it finds in the folder. A profile that names the four folders is therefore complete. An entry under `solvers` or `postprocessors` takes precedence over the folder. A program that is a package of the operating system, such as `/usr/bin/paraview`, needs no folder.
`solvers`	One binding per simulation code (Define solver bindings).
`postprocessors`	The programs for three-dimensional figures (Postprocessors).
`jobs`	Where and how simulations are run (Job execution).
`display`	Two values for maps in QGIS. `min_depth` is the minimum water depth in meters. Shallower water is drawn transparent, because a water film of a few millimeters stands between the roughness elements of the bed and does not flow. `velocity_cap` is the upper limit of the velocity color scale in m/s. Higher depth-averaged velocities typically occur in almost dry cells at the edge of the water and would otherwise flatten the color scale of the entire map.

To use another profile than the default one, for example on a computing cluster, set the environment variable AXQUA_PROFILE to its path, or pass --profile <file> when a job is submitted.

Updates. The profile is stored in the configuration folder of the user account, outside of the plugin and outside of the aXqua program. An update or a new installation of the plugin, of aXqua or of QGIS therefore neither changes nor removes it, and the new version reads the existing profile. The plugin itself stores only the path of the axqua program, in the settings of QGIS, which an update of the plugin also keeps. An entry of the profile that the installed version of aXqua does not know, for example because a newer version wrote it, stays in the file and is reported as a warning. A profile that cannot be read at all is never overwritten: if a new profile is saved in its place, aXqua keeps the previous file in the same folder under a name that ends with .bak.

Define solver bindings

A solver binding tells aXqua how to reach one simulation code. Its central entry is setup_script, the environment script of the installation (Simulation Software). The folder of the installation is stored separately, under installations (Plugin profile). If a profile names the installation folder of a code and no setup_script, aXqua uses the environment script that it finds in the folder, and the remaining entries of the binding are optional as before.

Entry	Meaning
`setup_script`	The environment script of the code: `pysource.<system>.sh` for TELEMAC and `etc/bashrc` for OpenFOAM.
`mpi_processes`	Number of processor cores that a simulation uses on this computer. Without this entry, the number in the case file applies. Use the number of physical cores, not of logical cores.
`environment`	`posix` (Linux and macOS, the default there), `windows` (an installation directly on Windows) or `wsl` (an installation in the Windows Subsystem for Linux).
`distro`	Name of the Linux distribution, for `environment: wsl` only. The `setup_script` is then a path inside that distribution.
`mpi_launcher`	The program that starts parallel runs, if it is not `mpirun` (`mpiexec` on Windows).

A code without a binding cannot be used on the computer. This is no error: a computer on which only TELEMAC is installed simply has no openfoam entry.

A profile takes precedence over machine settings that a case file may still contain. Three sources take precedence over the profile, for special situations: the environment variables AXQUA_TELEMAC_PYSOURCE and AXQUA_OPENFOAM_BASHRC, and a file solvers.local.yml next to a case file, which binds another installation for this one case.

Installations that were set up with an earlier version of aXqua keep working without a profile. Their settings in the files solvers.yml and profiles.yml of the configuration folder are still read. axqua profile init takes over the bindings of solvers.yml.

Job execution

Every simulation runs as a job: an independent process with its own folder, which continues when QGIS is closed. Two entries of the jobs block control how jobs are run:

root is the folder in which the job folders are created. Select a drive with sufficient free space, because the results of a single simulation can reach tens of gigabytes. Without this entry, jobs are written to the aXqua data folder of the user.
launcher is the method that detaches a job from QGIS. The default auto selects a suitable method for the operating system and rarely needs to be changed.

Batch-processing (headless) describes jobs in detail.
